| Additel | 761A-LLP/D |
|---|

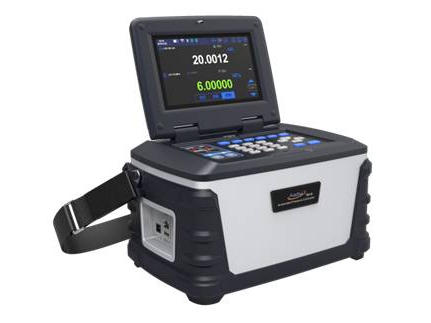

Additel 761A-LLP/D
Additel 761A-LLP/D
At  Additel,  innovation  and  continuous  improvement  are  part  of  our  company’s  culture  and  the  products  we  introduce.  When  we  set  out  to  deliver  the  Additel  761A  series  calibrators,  we  knew  we  needed  to  provide  breakthrough  improvements  and  additional  value  to  the  existing  line  of  calibrators  (Additel  761  series).  The  ADT761A  has  many  improvements:  increased  pressure  range  to  1,000  psi  (70  bar),  removable  internal pressure modules, optional precision models to 0.01%FS, increased speed to pressure,  ability  to  read  two  external  pressure  modules,  touch  screen  display,  Wi-Fi,  Bluetooth, and Ethernet communications, double the original battery life, and more!
STANDARD FEATURES
• Automated and self-contained pressure generation and control to 35 psi ( 2.5 bar)
• Up to 0.02%FS accuracy

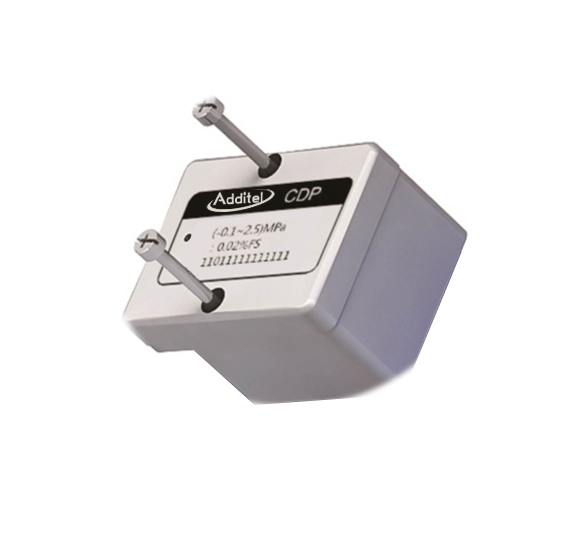

• Two removable internal pressure modules for multi-range selection
• Control stability to 0.005%FS
• Portable, designed for use in the field and in the lab
• Ability to measure two external pressure module
• Wi-Fi, Bluetooth, USB and Ethernet communication
• HART and provirus communication
• Full HART field communicator
• HART and provirus communication
• Data logging and task management
• Patented electric pump technology and improved speed
Other Features
| Pressure Specifications | ||||||
|---|---|---|---|---|---|---|
| Specification | 761A-LLP | 761A-D | 761A-500 | 761A-1K | 761A-APXR | 761A-BP |
| Max Pressure Range | 30 inH2O (75 mbar) | 35 psi (2.5 bar) | 500 psig (35 bar.g) | 1,000 pisg (70 bar.g) | Dependent on APXR | 1,200 hPasensor |
| Min Pressure Range | -30 inH2O (-75 mbar) | -13.5 psi (-0.95 bar) | -13 psi (-0.9 bar) | -13 psi (-0.9 bar) | Dependent on APXR | 100 hPasensor |
| Accuracy(1) | 0.05%FS | 0.02%FS | 0.02%FS | 0.02%FS | 0.01%FS | 0.01%FS |
| Stability | 0.005%FS or 0.05 Pa | 0.005%FS | 0.005%FS | 0.005%FS | 0.003%FS | 0.02 hPa |
| Pressure Type | Differential, Gauge | Differential, Gauge | Gauge, Absolute | Gauge, Absolute | Gauge, Absolute | Absolute |
| Over Range Indication | 1.2 | |||||
